Particulator Filter (DPF Filter)

Developed for flexible use on construction machines of less than 20 kW
Quick and easy to install and remove
Simple and fast electrical regeneration
High particulate removal independently verified

FITTED AND REMOVED FROM MACHINE IN MINUTES

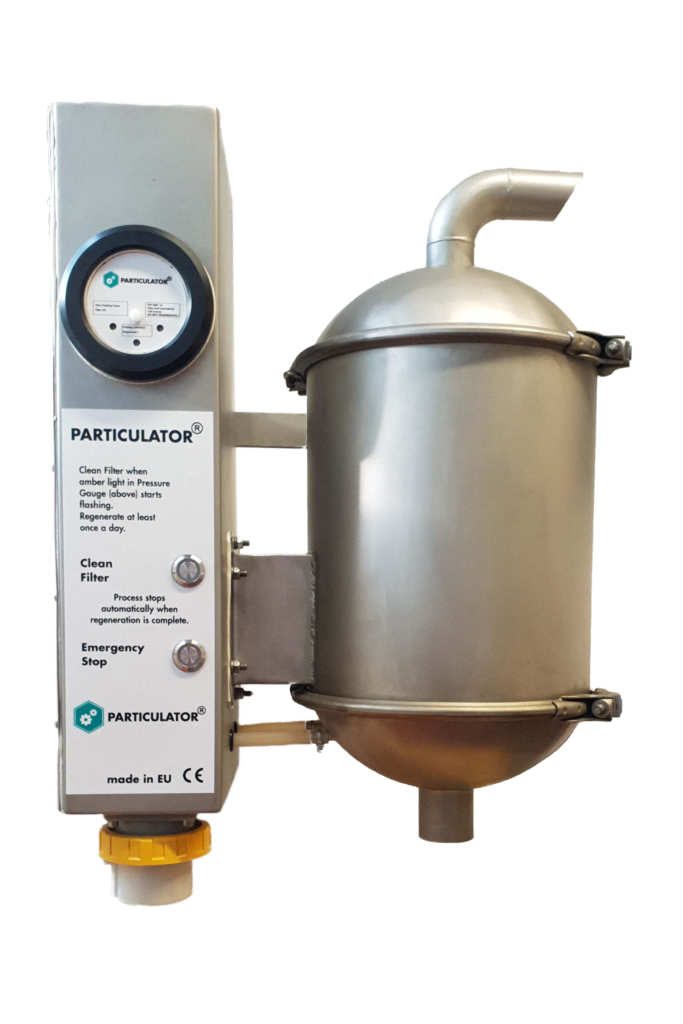

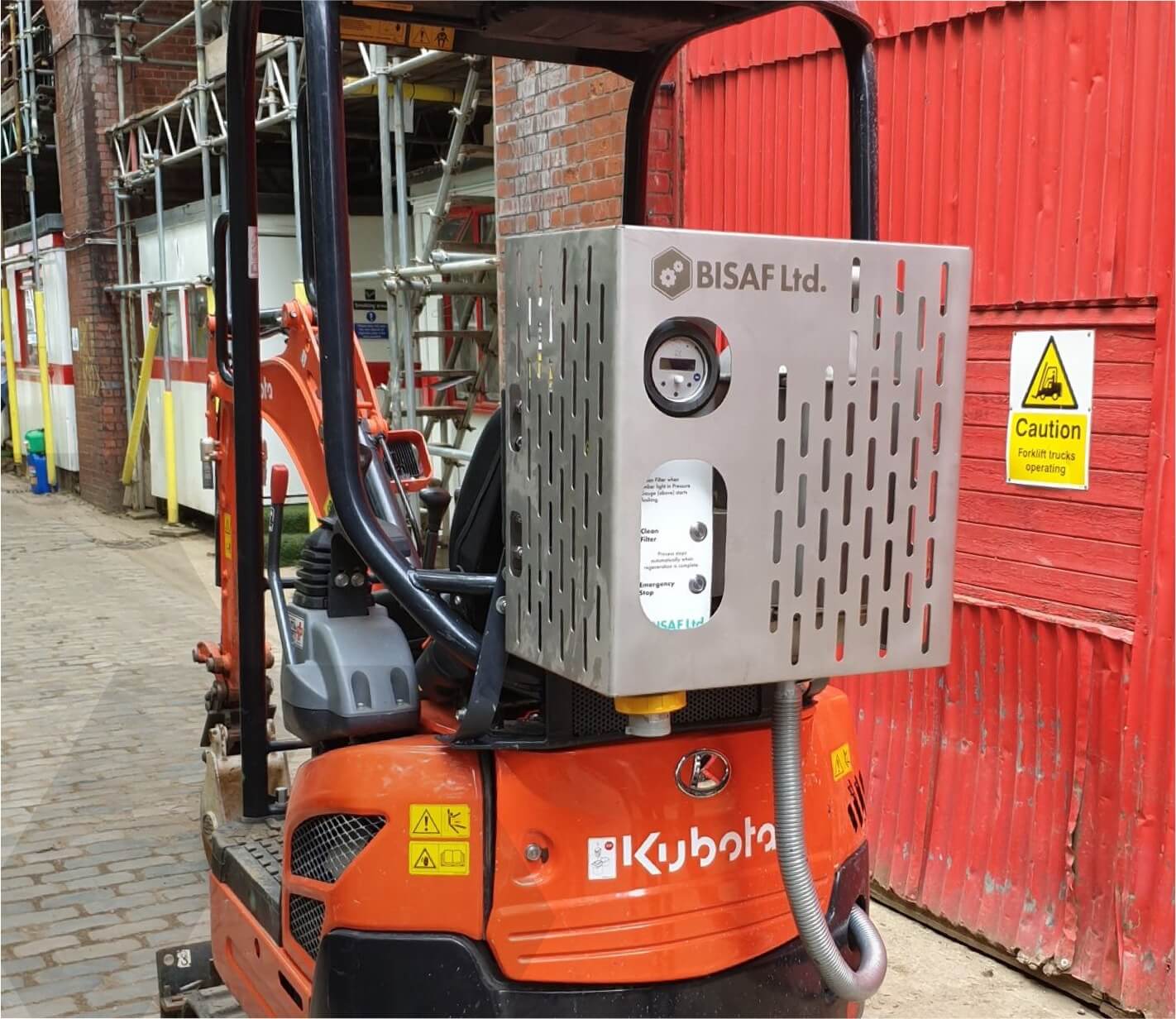

The Particulator® is made up of a state of the art permanent filter and a control cabinet for on board regeneration. The Particulator® is bolted to a frame normally installed behind the machine operator and can be fitted to or removed from the frame in minutes. This feature is important where a filter may not be specified for every job and the filter can be transferred to a machine when it is required.

EASY TO MONITOR FILTER SOOT LOADING
Because of unpredictable operating cycles, and mounting the filter at the end of the exhaust system for easy installation and removal, temperatures are too low for a passive regeneration system to work, so an electrical heating system has been developed to clean the trapped particulate from the system. A sensor monitors the back pressure in front of the filter and a traffic light system shows when to regenerate.

SIMPLE FILTER REGENERATION IN 30 MINUTES
When the filter monitor indicates that the filter should be regenerated, the engine is turned off, an external 110V electrical supply is connected, and one button is pushed on the control box to start the process. After 30 minutes the clean filter is ready to start work again. Normally the filter would be regenerated at the end of a working shift to ensure it is ready for a full day of operation.

Please contact your nearest Depot for further details and prices.
